If Object Auto-wait timeout not working

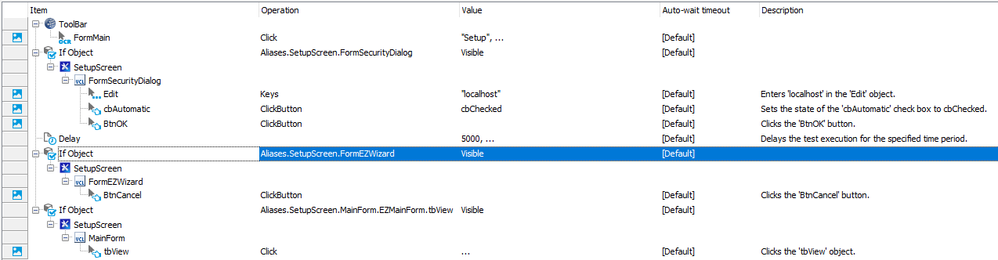

In the above image, the keyword test runs fine as long as I have the Delay preceding the highlighted If Object test action. If I remove the delay and instead set the Auto-wait Timeout of the highlighted If Object test action to even a ridiculous amount, like 30000 ms, the keyword test fails with a log message of "Unexpected window: 'EZSetup Wizard' 16:37:29 Normal 13.15" which is the object the highlighted If Object should be waiting for. In addition, there is no indication in the TestComplete indicator that the test is waiting for the object to appear, as is the case with the other If Object test actions in the keyword test.
Thanks for the replies and ideas folks. It turned out that the FormEZWizard didn't actually even exist in the mode the SetupScreen was in at the time, so I added an IfObject Exists ahead of the IfObject Visible and it works fine now.
