Can not recognize target desktop app

Hi there:

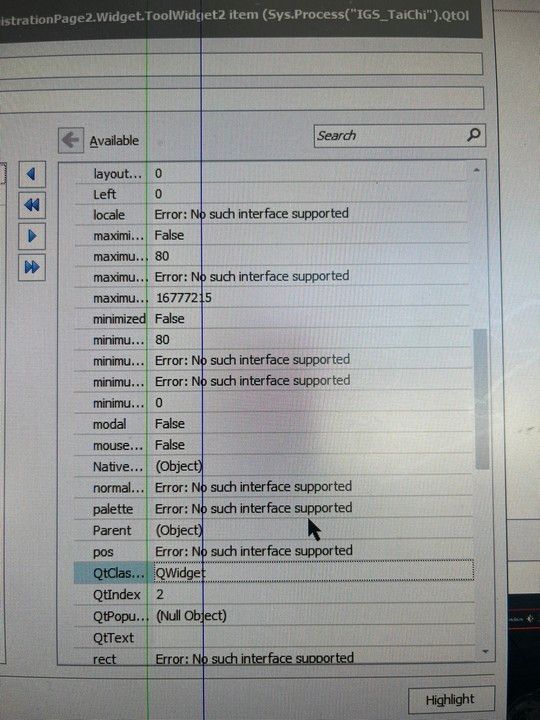

TC can not recognize my target desktop app which is developed by Qt5.15.2. Lots of properties are displayed as "Error no such interface supported" (Please see the screenshot), so I can not uniquely identify the object those I need. Is there anything that I can do on the TC side to resolve this problem? or anything on the target app side, like changing the compile way or something else to fix this problem?

Please give me some guidance, Thanks in advance.

Desktop Testing

Object Recognition

Script Tests

rraghvani
2 years ago
Read through Handle Dynamic Identifiers or ask your developers if it's possible to insert ID's for each UI control.

Also, you can use Windows Snipping Tool, to capture your screenshot and post it!

rraghvani
Champion Level 3
2 years ago
Was it working before? What has changed? What version of TC are you using?
- mengbinhao
  Contributor
  2 years ago
  This is my first time I have used TC recognize Qt application, The version of TC is 15.40
- mengbinhao
  Contributor
  2 years ago
  This is my first time I have used TC recognize Qt application, The version of TC is 15.40
rraghvani
Champion Level 3
2 years ago
I suggest you read through Testing Qt Applications to see what needs setting up.
- mengbinhao
  Contributor
  2 years ago
  didn't find a solution, Still thank you
rraghvani
Champion Level 3
2 years ago
What UI control are you spying on, list box, edit box, custom control, third party control ?
- mengbinhao
  Contributor
  2 years ago
  Qt standard control , QLabel, and QSpinBox
rraghvani
Champion Level 3
2 years ago

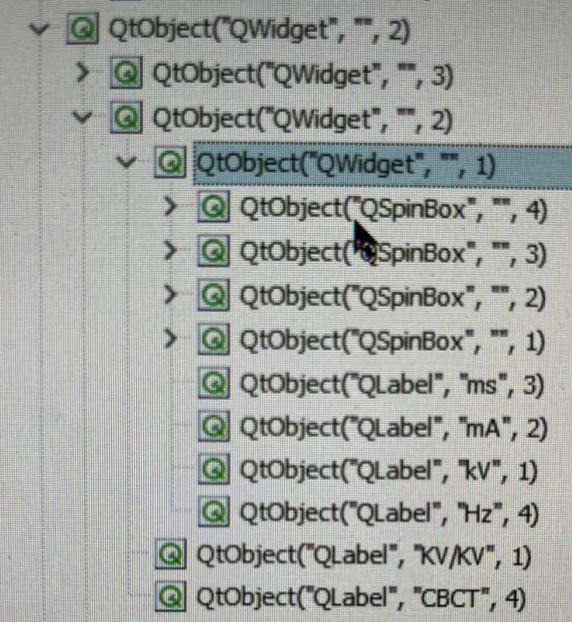

TC is able to identify your UI object (such as 'QtObject("QLabel", "Hz", 4)'), but not all property values will be shown for the object - most likely due to the object not exposing its properties.

The developers may not have created an "ID" for each of your UI objects, which can be tricky to identify. You will have to either use the window index value, or see if there's any other property values that uniquely identifies the UI object.
- mengbinhao
  Contributor
  2 years ago
  I have tried window index value of Qt controls for uniquely identifies UI objects , but the index is dynamically generated, It seems no any unique properties than I can use for identifying UI object, Lots of current properties after I edit for identifying showed popup as below, So now what I can do is recognizing the parent of my target controls or parent's parent of my target controls for meet my requirement
rraghvani
Champion Level 3
2 years ago
Read through Handle Dynamic Identifiers or ask your developers if it's possible to insert ID's for each UI control.

Also, you can use Windows Snipping Tool, to capture your screenshot and post it!
