What would be a good approach to build a framework for data driven testing

I'm trying to build a framework and working on ways to maintain test data in a effective manner. So thought of asking some suggestions here to see if any testcomplete offers something to make this easier.



Approach1

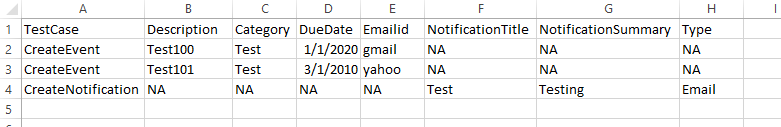

Create an excel sheet with all the testcases and its data, and write code using testcomplete's exceldriver methods to read the excel file and call the corresponding methods. I prefer using scripting to create tests rather than keyword tests, so each testcase listed in the excel sheet is a method/function. But in this approach, if i have 100 testcases and in total there are 50 different parameters i would end up having 50 columns, which would make it very difficult to manage. And i also need to execute the same testcase with different testdata



Approach2

Use the built-in test executing framework within testcomplete, save test data into text files and have it in Stores. Read the text files to retrieve testdata. One file for each testcase



Or suggest a way which you think might be effective

Data-Driven Testing
Scripting
  • tristaanogre's avatar
    tristaanogre
    6 years ago

    To answer your first question:

    I don't map the parameters of the test case to fields on the screen.  I simply parse them out into individual values and pass them in to the method/function that I'm calling.  So, the parameters MAY correspond to a field on the screen... or not.  All depends on how the test case is coded. There's a master loop, I'm assuming, that parses the spreadsheet into the different test cases.  How are you executing the test case?  Is that being done in some sort of switch statement or are you using some sort of "eval" or "Runner.CallMethod" means?



    In any case, what I would do is use the aqString List methods (GetLength, GetListItem, etc) to populate an array of the different parameters.  JavaScript then allows you do so something like



    methodCall(...parameterList) where parameterList is the array.  The ... auto-expands the array which, effectively, passes the parameters into the method in the order in which they are found in the array.



    The framework structure I prefer is that, rather than having the data being driven by test case is that I have a two-table approach.   Table 1 is the driver that gives the list of test cases to execute.  Table 2 contains the "steps" mapped via testcaseID to table 1 to indicate what steps to execute and in which order to execute the test case.  Something like this:

    TABLE 1

    TestCaseID, Description

    1, CreateEvent Test 101

    2, CreateEvent Test 102

    3, CreateNotification



    TABLE 2

    StepID, TestCaseID, StepName, SupportingData, Description

    1, 1, OpenApp, blah|blah

    2, 1, LogIn, blah|blah

    3, 1, GoToEventCreate, blah|blah

    4, 2, OpenApp, blah|blah



    and so on....



    That allows me a bit more modularity and granularity to construct test cases using something more "plain language" as well as minimizing the shear volume of parameters you may need to deal with.

  • tristaanogre's avatar
    tristaanogre
    Esteemed Contributor
    6 years ago

    I personally prefer the first method.  The reason being is that you can do a lot more in the way of specific tweaking of execution to fail out of test cases, control the flow with exception handling etc.

    As for your problem with columns, data, etc...  The way I handled that in the past was that I had a single column called "SupportingData" which had values separated by vertical pipes.  Using the https://support.smartbear.com/testcomplete/docs/reference/program-objects/aqstring/getlistitem.html method and other supporting methods, I used that way to just parse out the parameter values for the functions rather than having to have a different column for each parameter.



    • tristaanogre's avatar
      tristaanogre
      Esteemed Contributor
      6 years ago

      Oh, and if I can add that I prefer CSV over Excel.  CSV is a lot more portable.  You don't need to have a specific program to edit a CSV file.

    • sriram_sig's avatar
      sriram_sig
      Contributor
      6 years ago

      Thank you! I'm curious to know using the aqstring method how do you determine which data would correspond to a field on the UI. If it is a user form with 10 fields, what would be a good way to map the items in the list to its respective field. Also would like to know if your framework maps each testcase to a single method

      • tristaanogre's avatar
        tristaanogre
        Esteemed Contributor
        6 years ago

        To answer your first question:

        I don't map the parameters of the test case to fields on the screen.  I simply parse them out into individual values and pass them in to the method/function that I'm calling.  So, the parameters MAY correspond to a field on the screen... or not.  All depends on how the test case is coded. There's a master loop, I'm assuming, that parses the spreadsheet into the different test cases.  How are you executing the test case?  Is that being done in some sort of switch statement or are you using some sort of "eval" or "Runner.CallMethod" means?



        In any case, what I would do is use the aqString List methods (GetLength, GetListItem, etc) to populate an array of the different parameters.  JavaScript then allows you do so something like



        methodCall(...parameterList) where parameterList is the array.  The ... auto-expands the array which, effectively, passes the parameters into the method in the order in which they are found in the array.



        The framework structure I prefer is that, rather than having the data being driven by test case is that I have a two-table approach.   Table 1 is the driver that gives the list of test cases to execute.  Table 2 contains the "steps" mapped via testcaseID to table 1 to indicate what steps to execute and in which order to execute the test case.  Something like this:

        TABLE 1

        TestCaseID, Description

        1, CreateEvent Test 101

        2, CreateEvent Test 102

        3, CreateNotification



        TABLE 2

        StepID, TestCaseID, StepName, SupportingData, Description

        1, 1, OpenApp, blah|blah

        2, 1, LogIn, blah|blah

        3, 1, GoToEventCreate, blah|blah

        4, 2, OpenApp, blah|blah



        and so on....



        That allows me a bit more modularity and granularity to construct test cases using something more "plain language" as well as minimizing the shear volume of parameters you may need to deal with.
