problem with AFX application

This application I am trying to automate is not an open application as seen from attached screenshot.



Please check how to access various objects in it?



When I try to record script for a control bar item, it records something like below





   Call Aliases.Observer.wndObserver.AfxControlBar90.Afx.Click(71, 17)




I am expecting clickitem here to select a item on the bar.




Two Screenshots is attached.

3 Replies

  • anna_v's avatar
    anna_v
    Icon for Staff rankStaff
    14 years ago

    Hi,


    This application I am trying to automate is not an open application as seen from attached screenshot.


    Your application is an Open Visual C++ application. Please refer to TestComplete's help to learn how TestComplete supports testing of Visual C++ applications.

    I am expecting clickitem here to select a item on the bar.


    TestComplete records control-specific actions (such as ClickItem) only for supported controls. Could you please specify the class name of your tested control?


    Thanks in advance.

    Ann

  • kcsahu777's avatar
    kcsahu777
    Contributor
    14 years ago

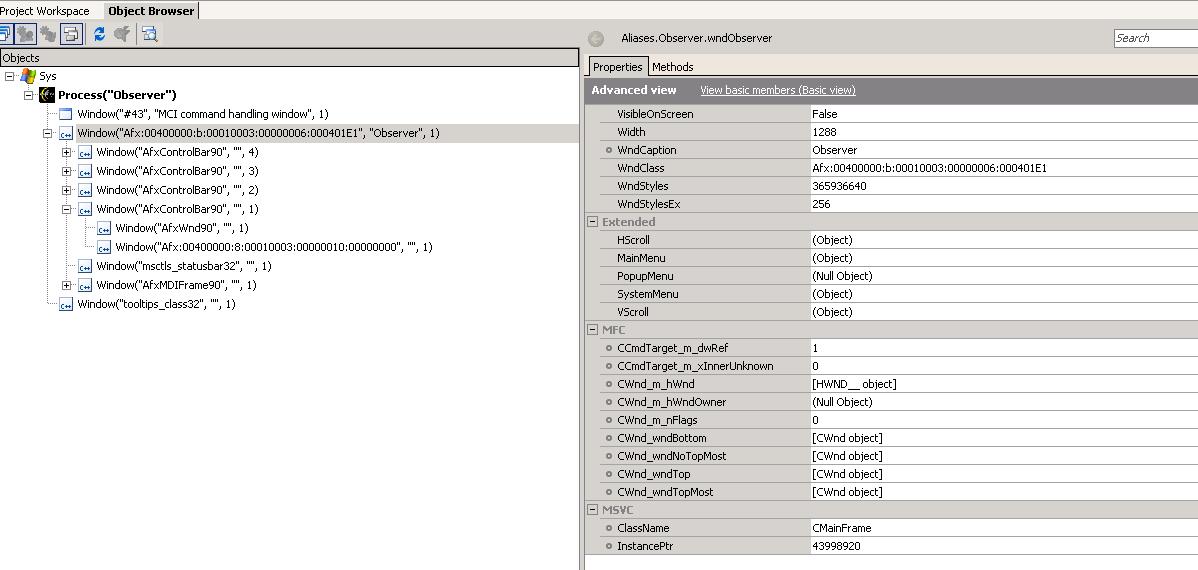

    Please fins the attached screenshot for the tree control in the application and the object browser screenshot for that.



    Also find the code below when I tried expanding and selecting a particular item from it.




    Sub Test3

      Dim page32770

      Dim afxWnd90

      Set page32770 = Aliases.Observer.wndAfx.page32770

      Set afxWnd90 = page32770.AfxWnd90

      Call afxWnd90.Click(11, 31)

      Call afxWnd90.Click(109, 26)

      Set afxWnd90 = page32770.AfxWnd901

      Call afxWnd90.Click(11, 48)

      Call afxWnd90.Click(107, 135)

      page32770.btnClose.ClickButton

    End Sub
  • anna_v's avatar
    anna_v
    Icon for Staff rankStaff
    14 years ago

    Hi,


    TestComplete does not provide control-specific methods for the controls you are using in your application. Try to enable MSAA for the AfxWnd90 class and record your script.


    I hope this helps.


    Ann
