Keep getting Object required error message when using FindAllChildren method

Hi everyone, I was trying to use FindAllChildren method to look for an object from the parent, but I keep getting "VBScript runtime error. Object required: 'FindAllChildren(...)'" when I run the sc...
  • RUDOLF_BOTHMA's avatar
    RUDOLF_BOTHMA
    6 years ago

    Hi whuang



    Why are you combining FindAllChildren with a click ?  FindAllChildren returns an array of items, not a single item, even if the array has a length of 1.  TC probably won't know what to click.  Since FindAllChildren excudes the current node, it is possible that by doing a FindAllChildren, you are excluding the one thing that TC can click, namely the parent.  If you use a FindChild rather than FindAllChildren with exact riterai, you should get a single list to to clickitem on





tristaanogre's avatar
tristaanogre
Esteemed Contributor

To add to RUDOLF_BOTHMA

You're combining a Find to find an object and then calling the parent of it before doing a findallchildren... what if the first Find doesn't find anything at all?  Or, what if the first find finds something that doesn't HAVE a Parent to call "FindAllChildren" on?

If you're going to use Find methods to find objects, you need to add additional code to verify that the Find worked all along the line.  Otherwise, you'll get all sorts of potential object not found issues.

whuang's avatar
whuang
Regular Contributor
6 years ago

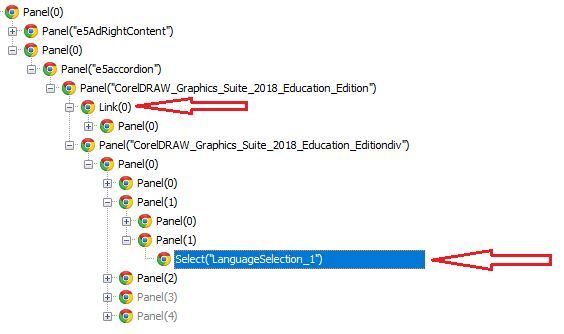

 Thanks tristaanogre RUDOLF_BOTHMA I thought FindChild method would only search for one child and return the search result, and FindAllChildren would look through all Children but still return the first finding as the result. Now I understand. Below is the screenshot of the tree view. Link(0) is the object I was looking for by using the first Find, and the LanguageSelection is somewhere under another parallel object. Can you let me know whatelse I can add into the code to the Find worked all along the line?

  • RUDOLF_BOTHMA's avatar
    RUDOLF_BOTHMA
    Community Hero
    6 years ago

    Hi whuang

    sys.Browser("*").Page("*").Find("contentText", "CorelDRAW Graphics Suite 2019 Education Edition", 10)



    This is likely bringing back the last of the two panels, since you have two panels that appear to have the same name.  In my experience, TC returns them in order from deepest in the tree to highest.  I wouldn't count on this though.



    I would suggest name mapping the top Panel("CorelDRAW Graphics Suite 2019 Education Edition")  Now it's easier to find the next panel with the same name uniquely and, well, name mappings are faster, neater and easier to manage your KWTs and scripts if layouts change



    Although I'm not sure why you need to move from the link to the parallel node, I would probably look at the following pseudo code (assuming you have mapped the panel)  I leave the translation of the code from jscript to the viewer...

    var topPanel = Aliases...CorelDrawPanel //just for clarity of code.  you could use the entire alias.  Allocating to a var just shortens it

var findproperties = ["ObjectType","ObjectIdentifier"] //Guessing at identifiers - you will have to check
var findvalues = ["Link","0"]
var linkItem = topPanel.FindChild(findproperties,findvalues...);
if(linkItem.Exists){
Log.Message("Link Found");
}
else{
Log.Message("Link Not found");
}
//If you have no particular need for the link, you could rather map the bottom panel the same way
var secondPanel = Aliasses..SecondPanel
//If you haven't mapped it, find the panel with a standard find:
var secondPanel = topPanel.FindChild(["contentText","ObjectType"],["coreldraw..."],["Panel"],....);
//either way, you have the bottom tier panel by that name

I'm guessing the Select("LanguageSelection_1"); has contentText "spanish" and Select("LanguaghSelection_2") has contentText "English" etc, so search for the correct one

var selectProps = ["contentText","ObjectIdentifier"];
var selectVals = ["Spanish"],["LanguaghSelection_*"] //Note the wildcard in the objectidentifier so you will search all languages

var spanishSelect = secondPanel.FindChild(selectProps,selectVals,...)
if(spanishSelect.Exists){
Log.Message("Spanish is a language);
}
else{
Log.Message("Spanish isn't a language");
}

//Now on to the click:
//If you can click the select directly:
spanishSelect.Click();
//The more likely scenario, the onClick is linked to the panel, in which case:
spanishSelect.Parent.Click();
