Swagger xml attribute representation

Swagger lacks representing xml with attributes properly. I think the problem is OpenApi only considered key/value pair each element just like JSON.

Is there any plan to fix it.

Example of xml
<MESSAGE att1="Name" att2="DOB"></MESSAGE>

And in Swagger UI 'Try it out' section failed to accept and set the values on attributes of the xml
  • Hi WT

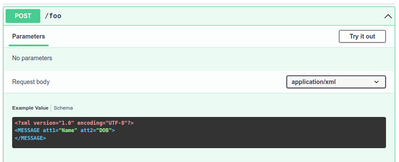

    XML is supported by OpenAPI, take a look at https://swagger.io/docs/specification/data-models/representing-xml/.  Here is your example written down...



    openapi: 3.0.3
    info:
      title: XML Example
      description: XML Example
      version: "0.1"

    paths:
      /foo:
        post:
          requestBody:
            content:
              application/xml:
                schema:
                  $ref: '#/components/schemas/Message'
          responses:
            '201':
              description: Created
              content:
                application/xml:
                  schema:
                    $ref: '#/components/schemas/Message'

    components:
      schemas:
        Message:
          type: object
          xml:
            name: MESSAGE
          properties:
            att1:
              type: string
              example: Name
              xml:
                attribute: true
            att2:
              type: string
              example: DOB
              xml:
                attribute: true
