How to work on a SAP ShellTree object and where to find SAP methods documentation?

I have bee using SAPWebGui for testing but I found that the SAPGui is more reliable and I am trying to switch over. But here I am facing issues with addressing objects.



I am testing SAPGui Release 800 with Quartz theme. I want to work on a ShellTree object with a couple of lines and columns. In the object browser, there are a lot of SAP methods for the ShellTree and my assumption is that I can use them for example to select items. I tried the SelectNode(NodeKey) in the assumption that the node is highlighted. But I don't know how the NodeKey is composed, so I took just simple integer values. Nothing is highlighted.



Then I executed shelltree.SelectedItemNode. This returned an object, but I cannot get a sensible content of the object and I don't know what I could expect from it.



The bottom line of my question is how can I use the SAP methods in TC and where to find the documentation for them.



Thank you very much for supporting me.





Desktop Testing
Name Mapping
Object Recognition
Script Tests
Test Creation
  • rraghvani's avatar
    rraghvani
    2 years ago

    The coding will be something like,



    var shelltree = sapsession.FindById("wnd[0]/usr/cntlTREE_CONTAINER/shellcont/shell/shellcont[1]/shell"); // Get tree control
shelltree.currentCellRow = 2
shelltree.doubleClickCurrentCell;





    See GuiTree Object to see methods and parameters, and Special Functions of the Tree Structure to understand the tree structure.



    Also, if you do a internet search, you can get snippets of coding.

5 Replies

Sort By
    • roli62's avatar
      roli62
      Occasional Contributor
      2 years ago

      Thank you rraghvani, but I know this page. My SAPGui is supported and I automated already a couple of things with SAPGui. However, I cannot operate on the ShellTree  and I cannot find any instructions on that.

  • rraghvani's avatar
    rraghvani
    Champion Level 3
    2 years ago

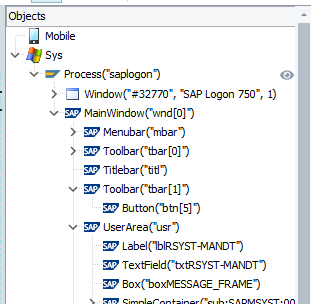

    What does the Object Browser tree view look like for your control?



    For example,



    • roli62's avatar
      roli62
      Occasional Contributor
      2 years ago

      Hi rraghvani,

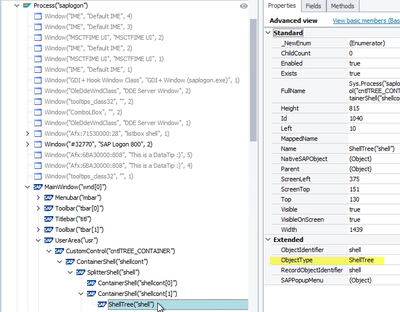

      the first screenshot shows the object browser tree and the object typ "ShellTree":

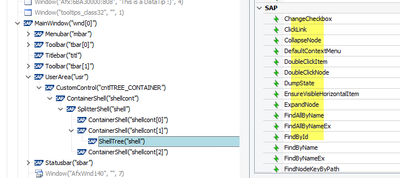

      The following screenshot shows the methods I want to use (or should I say, that I think I can use for my purpose 😉 )  :

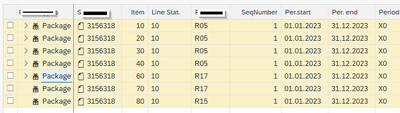

      And finally, this is the GUI I want to work on, e.g. select a node or enable a checkmark:





  • rraghvani's avatar
    rraghvani
    Champion Level 3
    2 years ago

    The coding will be something like,



    var shelltree = sapsession.FindById("wnd[0]/usr/cntlTREE_CONTAINER/shellcont/shell/shellcont[1]/shell"); // Get tree control
shelltree.currentCellRow = 2
shelltree.doubleClickCurrentCell;





    See GuiTree Object to see methods and parameters, and Special Functions of the Tree Structure to understand the tree structure.



    Also, if you do a internet search, you can get snippets of coding.
