DevExpress 15 and Click Event on Radio Controls

We are upgrading to DevExpress 15 (from 14) and experiencing difficulties with using XPath and radio controls. Specifically, once the control is found there doesn't appear to be a click event.  I see that the className contain unchecked. How do I click on a radio button in DevX 15? Does it require SmartBear support?





function SelectSiteAccess() {
	// retrieves reference to browser
    var page = Aliases.browser.CribMaster.PrimaryWrapper.PrimaryContent.EmployeeGrid.sectionActionwrapper.sectionActioncontent.panel.tableSplresizing.cell2.panelSplresizing1Cc.formMainform.panelPnlgridpropertiescallback.panelPartialproperties.panelPartialpropertiesCc.Panel("partialProperties_C11").Panel(0).Article(0).Panel(0);

	if (Project.Variables.Employees.Value("SiteAccess") == null) { return; }

	// retrieves value from 'SiteAccess' column in spreadsheet
	var SiteAccess = Project.Variables.Employees.Value("SiteAccess").split(",");
	var AccessType = Project.Variables.Employees.Value("AccessType").split(",");

	// iterates through array of Site Access(s) and selects radio control
	for (var i = 0; i < SiteAccess.length; i++) {
		var obj = page.FindChildByXPath("//table[@id='tlEmployeeSiteAccess']//input[@id='SiteAccess" + AccessType[i] + "_" + SiteAccess[i] + "_S']", true);

		if (obj != null) {
			// clicks radio button
			try {
				obj.Click(); <====== FAILING HERE

			} catch (e) {
				Log.Error("Error clicking item!");
			}
		}
		else {
			Log.Error("Could not locate Access '" + AccessType[i] + "'" + " for Site '" + SiteAccess[i] + "'");
		}
	}
}
  • william_roe's avatar
    william_roe
    9 years ago

    I have determined the height and width are 0 in DevExpress 15 while they were 1 in DevExpress 14. I'm checking with the developers to see if they can explicitly set the values to 1.





    Thanks for the replys.

  • TanyaYatskovska's avatar
    TanyaYatskovska
    SmartBear Alumni (Retired)
    9 years ago

    Hi William_roe,



    According to this line:

    var obj = page.FindChildByXPath("//table[@id='tlEmployeeSiteAccess']//input[@id='SiteAccess" + AccessType[i] + "_" + SiteAccess[i] + "_S']", true);

    you are getting all input elements with id=SiteAcces<Number>_<Number>_S.

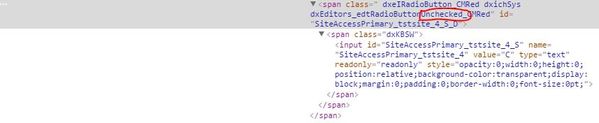

    However, according to your screenshot, your page displays this element by using the span tag. So, I suggest that you change input with span in your test:

    var obj = page.FindChildByXPath("//table[@id='tlEmployeeSiteAccess']//span[@id='SiteAccess" + AccessType[i] + "_" + SiteAccess[i] + "_S']", true);





    • william_roe's avatar
      william_roe
      Super Contributor
      9 years ago

      I noticed also the control type changed from input to span. However, if I change it to span the 'Click' event is still not found.. I've also tried changed setting the  'page' variable to "Sys.Browser().Page("*")" to confirm the 'page' variable was set properly and it was.



      		if (0 == aqString.Compare(Sys.Browser().Page("*").Parent.ProcessName, "chrome", false))
		    obj = page.FindChildByXPath("//table[@id='tlEmployeeSiteAccess']//span[@id='SiteAccess" + AccessType[i] + "_" + SiteAccess[i] + "_S_D']", true);
		else
		    obj = page.FindChildByXPath("//table[@id='tlEmployeeSiteAccess']//span[@id='SiteAccess" + AccessType[i] + "_" + SiteAccess[i] + "_S_D']", true);
      • TanyaYatskovska's avatar
        TanyaYatskovska
        SmartBear Alumni (Retired)
        9 years ago

        You need to troubleshoot your XPath. Changing input to span was only my guess. Perhaps, something else was changed as well.
