Converting an old project to CSS/XPATH

Hi,   It seems most of the updates of TestComplete are geared toward Cross Platform Testing which is great. But my question is how do you convert an old project namemapping to the one that uses CSS...
Name Mapping
  • hkim5's avatar
    hkim5
    4 years ago

    the converter is available in 14.72 - the official documentation has not gone up yet



    What is it
    A simple conversion utility to help users convert their Namemapping file from proprietary object recognition format to cross-platform object recognition format (XPath and CSS Selectors). This will help users run
    tests created prior to v14.40 on CBT. Our internal tests suggests that ~70% of conversion happens automatically.
    How it works
    There are two phases of conversion:
    Data collection phase - TestComplete needs to analyze information in your Namemapping file and create new mapping criteria during runtime. You will need run your existing project several times so that TestComplete reads and understands as much information as possible.
    Conversion phase- After TestComplete get generates the required files, it applies the new criteria to your existing project

    Instructions
    1. Make sure to back up your entire project
    2. Launch TestComplete using a special command line key - -SaveNameMappingData:"<Directory_to_store_namemapping_data>"
    3. Run you test several times so all test cases are executed and all objects are interacted with
    4. Close TestComplete and restart TestComplete without the special command line key
    5. Go to Namemapping panel, right-click to bring up the context menu, and select “Convert Namemapping”

      Select all the files that were generated in the “data collection” phase and click OK
    6. Your objects will now be in the cross-platform format (XPath and CSS Selectors)
wmtan01's avatar
wmtan01
Contributor

Do you mean our current project might still work with cross platform using CBT? I have not tried it yet as we are exploring a more selenium approach to some of our mobile testing.



But I hope Smartbear introduces a converter or if not a hybrid namemapping that accepts both CSS Selectors/XPATH and the existing one, or does it allow us to do that now? I have not seen the option

hkim5's avatar
hkim5
Staff
4 years ago

the converter is available in 14.72 - the official documentation has not gone up yet



What is it
A simple conversion utility to help users convert their Namemapping file from proprietary object recognition format to cross-platform object recognition format (XPath and CSS Selectors). This will help users run
tests created prior to v14.40 on CBT. Our internal tests suggests that ~70% of conversion happens automatically.
How it works
There are two phases of conversion:
Data collection phase - TestComplete needs to analyze information in your Namemapping file and create new mapping criteria during runtime. You will need run your existing project several times so that TestComplete reads and understands as much information as possible.
Conversion phase- After TestComplete get generates the required files, it applies the new criteria to your existing project

Instructions
  1. Make sure to back up your entire project
  2. Launch TestComplete using a special command line key - -SaveNameMappingData:"<Directory_to_store_namemapping_data>"
  3. Run you test several times so all test cases are executed and all objects are interacted with
  4. Close TestComplete and restart TestComplete without the special command line key
  5. Go to Namemapping panel, right-click to bring up the context menu, and select “Convert Namemapping”

    Select all the files that were generated in the “data collection” phase and click OK
  6. Your objects will now be in the cross-platform format (XPath and CSS Selectors)
  • wmtan01's avatar
    wmtan01
    Contributor
    4 years ago

    Sorry for spamming the thread.



    I did try it out and the following are the results:

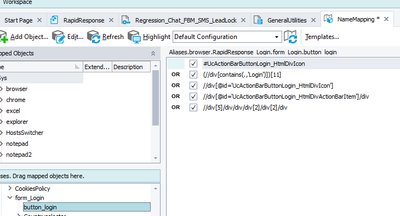

    This object was passed through by a small script I ran with the command line and converted

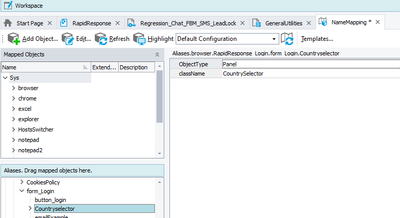

    This object was not used in the small script so was not converted



    I then tried to run a larger script that calls both objects and it worked! When I tried to edit the namemapping, for the object that was converted, it now showed me the edit screen for selectors while for the non converted it still showed me the previous editor.



    It's my first time seeing the CSS/Xpath edit window and noticed it can only be modified by adding "Or" conditions to the selectors, is it not possible to do it similar to the old identifiers where you can say something like this?



  • hkim5's avatar
    hkim5
    Staff
    4 years ago

    im glad to see that it (partially) worked. As you would expect, TestComplete can only collect information about the objects if they are interacting with them during the test run using the special cmd line key to collect the xpath/css selector info



    As far as your comment for the object identification properties go, you are correct. You cannot set it up to use the conditional mode as you used to within the classic name mapping projects. The css/xpath selectors are automatically mapped using a combination of boolean OR operators for the selectors. However, should you need more flexibility in search expressions, you can use XPath 1.0 functions like contains, substring, starts-with and others.

    XPath 2.0 functions (like lower-case(), matches() and others), Microsoft extensions and other third-party extensions to XPath functions are not supported.



    additionally, you can parameterize these search expressions with project level variables (kind of like you used to be able to with the classic name mapping), but you will need to encapsulate your project level variable name in '%' in order to reference them.

  • hkim5's avatar
    hkim5
    Staff
    4 years ago

    wmtan01 any luck trying out the conversion steps above?

    We're eager to hear your experience.





  • wmtan01's avatar
    wmtan01
    Contributor
    4 years ago

    Hi,



    Sorry about that, I was busy doing other stuff for work. We're currently working on cleaning up our namemapping that's why I came across the CSS/XPath changes.



    I'll try it out and let you know!

  • wmtan01's avatar
    wmtan01
    Contributor
    4 years ago

    hkim5 I was reading the steps and saw that the data collection phase basically needs to hit my namemapping object, meaning it needs to be used in a test? or at least identified in a page?



    What happens if we have some objects mapped that are not currently used in a test, will they disappear when i hit convert?

  • wmtan01's avatar
    wmtan01
    Contributor
    4 years ago

    It looks like the TestComplete runner can actually use both styles of identifiers and accept a hybrid namemapping which is awesome!



    Does running with the Device Cloud Add-on require that my entire namemapping be CSS/XPath or will it still work with some objects using the old style? I honestly have not dived-in much to that Add-on

  • AlexKaras's avatar
    AlexKaras
    Champion Level 3
    4 years ago

    Hi,



    > Does running with the Device Cloud Add-on require that my entire namemapping be CSS/XPath

    Yes it does.

    Actually, what Device Cloud add-on does is it converts internal TestComplete commands that drive tested web page into Selenium analogues. This is required because it is Selenium that can drive web pages across different platforms and thus Selenium is used under the hood for Cross-platform testing in TestComplete. And as Selenium cannot deal with 'native' objects mapping used in TestComplete but only with XPath and/or CSS, this is the reason for the requirement that all objects that cross-platform test interacts with must be mapped via XPath/CSS.

    Other objects that are not used in cross-platform tests can be left as they are.



  • wmtan01's avatar
    wmtan01
    Contributor
    4 years ago

    That means converting an existing project to be Cross Platform compatible is a huge effort even with the converter as the reliability is still unknown, I saw how much OR conditions the converter created and with the way we built our namemapping we are relying heavily on wildcards for most objects to make it cleaner and easier to understand which the converter will not pick up.



    Thanks for the info!

  • AlexKaras's avatar
    AlexKaras
    Champion Level 3
    4 years ago

    > I saw how much OR conditions the converter created

    To my understanding these ORs correspond to all cross-platform identifiers that TestComplete can identify while analyzing this or that web element. (E.g. identification by id, XPath, CSS, etc., see https://support.smartbear.com/testcomplete/docs/app-testing/web/cross-platform/addressing.html#addressing-web-objects-in-object-browser and screenshot.)

    So these ORs are just an attempt to increase identification stability so that if first locator fails, TestComplete tries the second one and so on. Every condition in cross-platform namemapping does not depend on others combined by OR clause. (This is documented.) If, for example, web elements on the tested web page have stable and unique IDs, all other locators can be safely disabled or deleted in cross-platform namemapping.
