Accessing Sub Menu Items from Context Menu

The recorded action converted to the following steps:

Aliases.CrewWare.HwndSource_PopupRoot.PopupRoot.Click(58, 105)
Aliases.CrewWare.HwndSource_PopupRoot.PopupRoot.Click(68, 11)
Aliases.CrewWare.HwndSource_PopupRoot.PopupRoot.Click(64, 15)

The image snapshots for each step above showed the correct submenu, but when run, all of the clicks occured in the first-level menu, not the submenus.  Additionally, these are still based on relative X,Y coordinates of the object.  I would like to access the menu items by name, header, or possibly even a tag in the WPF object.

The TC Click Action accepts X,Y coordinates, so name or index will not work as parameters there.

Others report success using FindChild, but I have not been able to get FindChild to return the menu item object.

The object returned by Point and Fix object:
Aliases.CrewWare.HwndSource_PopupRoot.PopupRoot.WPFObject("Decorator", "", 1).WPFObject("NonLogicalAdornerDecorator", "", 1)

I'm thinking I need to poke around this object somehow.

When we recorded keyword tests, the recording would save the wrong objects from name-mapping. It was over a year-ago and my memory is a little vague, but the results were not what we expected, and we had trouble discerning what we needed.

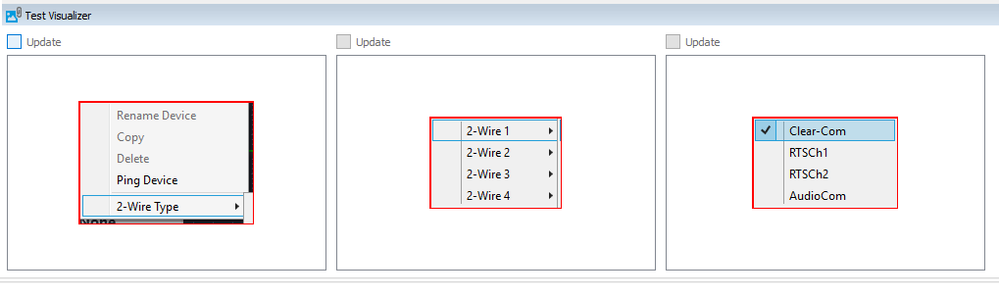

Here's a Test Visualizer image of the context menu's.  I believe this was produced with the code below.

Three level context menu accessed by right-clicking on an object

Sample Code:

This is the code where we left-off.  Maybe it will give you some ideas.

The code:

#. Set the scroll position
#. right-click an item in a listbox to cause the 1st level context menu to popup
#. Call FindAll on PopupRoot and call FindAll of the result to log the results for viewing/debugging (trying to find accessible objects)
#. Hover the mouse over 1st level menu (looks like the coordinates are hard-coded)
#. Determine positionally (x,y) where level 2 submenu is
#. Hover the mouse over the level 2 submenu to cause the 3rd level menu to popup
#. Determine the position of an item in the 3rd level menu by adding the width of the 2nd level menu
#. Click on the determined position

Hopefully this will help you find a path forward.  I'm sure we will need to revisit this in the future.  We desperately need a solution.  We use context menu's in many places.

# Script is not complete.
# TODO: need to figure out way to access multi-level context menu items

import ScriptGetMCU

def SystemDiagramOnline1():
    Aliases.CrewWare.HwndSource_mainWindow.mainWindow.tabControl1.scrollViewer1.VScroll.Pos = 0
    Aliases.CrewWare.HwndSource_mainWindow.mainWindow.tabControl1.scrollViewer1.HScroll.Pos = 0

    x = ScriptGetMCU.GetMCUIndex()
    Aliases.CrewWare.HwndSource_mainWindow.mainWindow.tabControl1.listBoxDevices.ClickItemR(x)

    # Attempting to figure out how to access context menu items by names, so far unsuccessful
    arrayproperties=["ClrClassName"]
    arrayvalues=["*"]
    something = Aliases.CrewWare.HwndSource_PopupRoot.PopupRoot.FindAll(arrayproperties, arrayvalues, 100, True)
    for x in range(len(something)):
      Log.Message("something[" + str(x) + "]" + something[x].ClrClassName + ", " + something[x].Name)
      somethingelse = something[x].FindAll(arrayproperties, arrayvalues, 100, True)
      for y in range(len(somethingelse)):
        Log.Message("somethingelse[" + str(y) + "]" + somethingelse[y].ClrClassName + ", " + somethingelse[y].Name)

    contextmenu = Aliases.CrewWare.HwndSource_PopupRoot.PopupRoot
    contextmenu.HoverMouse(60, 100)
    Delay(500)

    #Submenu1
    mouseX = Sys.Desktop.MouseX
    mouseY = Sys.Desktop.MouseY
    mouseX = mouseX + contextmenu.Width
    submenu1 = Sys.ObjectFromPoint(mouseX, mouseY)
    objectPoint = submenu1.ScreenToWindow(mouseX, mouseY)
    submenu1.HoverMouse(objectPoint.X, objectPoint.Y)
    Delay(500)

    #Submenu2
    mouseX = Sys.Desktop.MouseX
    mouseY = Sys.Desktop.MouseY
    mouseX = mouseX + submenu1.Width
    submenu2 = Sys.ObjectFromPoint(mouseX, mouseY)
    objectPoint = submenu2.ScreenToWindow(mouseX, mouseY)
    Delay(500)
    submenu2.Click(objectPoint.X, objectPoint.Y)

tristaanogre

Object spy sees it as a context menu which is a good sign. However, my problem is that I have items like "Add..., Remove..., Properties..., etc.) which TestComplete recognizes (they get highlighted in the menu) but the actual Click that I want doesn't occur. In other words, TestComplete is highlighting (hovering over) the items in the list and not actually clicking on them.  I even tried using integers like 0,1,2,3 (which is something I don't want to do for obvious reasons) but that method didn't work.

It recognizes that it's a popup context menu and works when I use X,Y coordinates within the context menu and a click occurs.

I have tried various methods from the documentation and other support cases but can't seem to get anywhere and this issue seems to fall in line with mine.
