readOnly properties do not display correctly with Swagger UI in python-flask

Using this example yaml:



openapi: 3.0.0
info:
  version: 0.0.0
  title: test

paths:
  /users:
    post:
      summary: Create a user
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/User'
      responses:
        '201':
          description: Created
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/User'

components:
  schemas:
    User:
      type: object
      properties:
        id:
          type: integer
          example: 5
          readOnly: true
        name:
          type: string
          example: Bob



I expect to see this in the request body:



{
  "name": "Bob"
}



However, I can also see the id property:



{
  "id": 5,
  "name": "Bob"
}





This occurs whenever I generate code, through both the Swagger Editor and Swagger Codegen in python-flask.

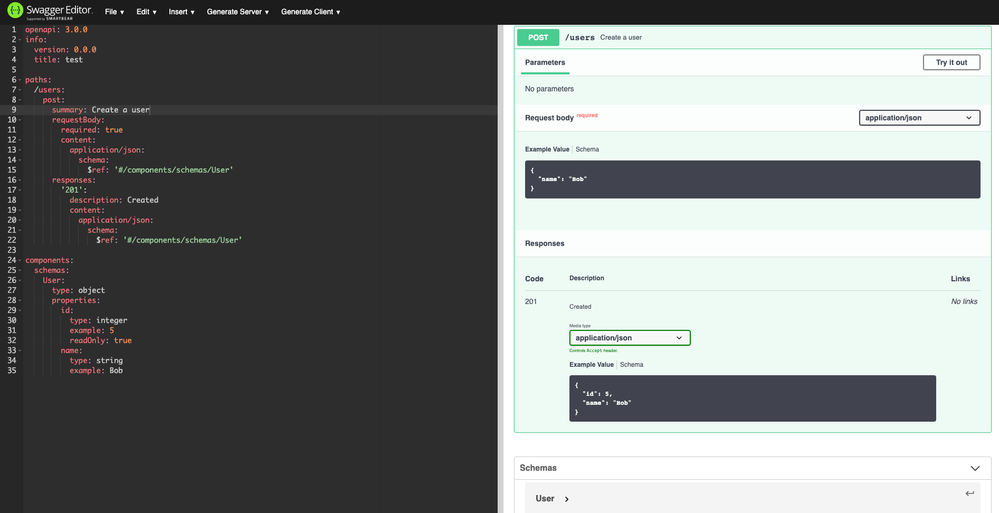

However, it displays correctly in the Swagger Editor's preview:

Swagger Editor preview is correct

I'm likely somehow generating it incorrectly, so any help would be greatly appreciated!

  • HKosova's avatar
    HKosova
    SmartBear Alumni (Retired)

    Most likely, python-flask uses an old version of Swagger UI. Try using the latest dist assets from the Swagger UI repository.

    • cnheric's avatar
      cnheric
      New Contributor

      I've tried to use the latest version 3.25.5 of Swagger UI by grabbing the dist files and following these steps  and it didn't resolve it. I also tried cloning the whole repo, rebuilding the dist, and using those files, but that also did not resolve it.

       This is the index.j2 I'm using per the answer and I'm using the generated code to setup the app:

      app = connexion.App(__name__, specification_dir='./swagger/')
      app.app.json_encoder = encoder.JSONEncoder
      app.add_api('swagger.yaml', arguments={'title': 'test'}, pythonic_params=True)
      app.run(port=8080)
