Forum Discussion

hhagay's avatar
hhagay
Contributor
9 years ago

identify dynamic objects properties

Hello The AUT uses react to generate ids upon page load.   Consider the following text input objects.   <input id="ssn_mask" class="field-input field-input--ssn" name="ssn_mask" value="" data-re...
hhagay's avatar
hhagay
Contributor

Good morning



I have attached a word document comprises of the fields you requested.

Let me know if you need additional information.





Thanks





tristaanogre's avatar
tristaanogre
Esteemed Contributor
9 years ago

What happens if you do a recording of entering data in the SSN fields? How does TestComplete map them? TestComplete is pretty "smart" when it comes to such stuff so, rather than attempting to code around it, try a record and see what it comes up with.



As it is, there is a class with class name "field field--grouped" and there is a label asociated with it for "ssn_mask". That MIGHT be able to be mapped using those properties.  Then, you have three child objects underneath ordered from left to right by reactid.  That MIGHT be how you need to access those fields... start with the parent ssn_mask object and then map the three objects underneath, perhaps using wildcards for the reactID's like *.0, *.1, and *.2 to distinguish them.

  • hhagay's avatar
    hhagay
    Contributor
    9 years ago

    Hello Robert



    I tried recording but it didn't help. Here is the record code.

    function Test1()
{
	var panel;
	var textbox;
	Browsers.Item(btChrome).Navigate("https://qa1-payrollplussuite.castandcrew.com/offers/4508/onboarding/profile");
	panel = Aliases.browser.pageQa1PayrollplussuiteCastandcr.form.panel.panel.panel.panel.panel;
	textbox = panel.panel.panel.textboxSocialSecurity;
	textbox.Click(23, 16);
	textbox.SetText("");
	textbox.Click(12, 19);
	textbox.SetText("45");
	textbox.Click(13, 16);
	textbox.SetText("6789");
	textbox = panel.textboxAlternateEmployeeId;
	textbox.Click(36, 12);
	textbox.SetText("1234");
}

    I try to stay away from TC name mapping or anything that will limit the code (as much as possible). I use XPat throughout.

    The SSN input boxes are designed in such way that as soon as user enters 3 digits in box 1, it shifts focus to box 2. As soon as user enters 2 digits here, it transfers focus to box 3.

    I came up with this unintelligent code.



    		var btnSSN1 = page.FindChildByXPath("//input[1][@id='ssn_mask']");
		var btnSSN2 = page.FindChildByXPath("//input[2][@id='ssn_mask']");
		var btnSSN3 = page.FindChildByXPath("//input[3][@id='ssn_mask']");
		btnSSN1.SetText(strOne);
		Delay(500);
		btnSSN2.SetText(strTwo);
		Delay(500);
		btnSSN3.SetText(strThree);
		Delay(500);



    But that (semi) solved the SSN issue only. I have all kinds of challenges in this form ( and I have 4 of them.. :) )

    For example; I am still baffled why I cannot click a dropdown list box and select an item via automation. I will not stay open for the script to select the option.







    • baxatob's avatar
      baxatob
      Community Hero
      9 years ago

      Hi,

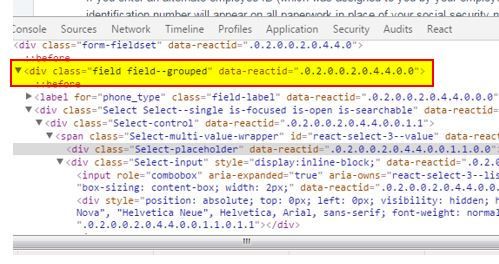

      You have provided the Object Browser properties for the parent element of your combobox:





      ...however you should investigate its child. Are they presented as TextNodes?
