DenisMedvedev
9 years agoContributor
How to create your own plugin?
I have created ExcelOLEcode.js file for working with Excel, see below code:
function Create(fileName) { oWorkBook = Sys.OleObject("Excel.Application").Workbooks.Add(); oWorkBook.SaveAs(fileName); oWorkBook.Close(); Sys.OleObject("Excel.Application").Quit(); } function Open(fileName) { oWorkBook = Sys.OleObject("Excel.Application").Workbooks.Open(fileName); } function Close() { oWorkBook.Save(); oWorkBook.Close(); Sys.OleObject("Excel.Application").Quit(); } function GetSheet() { return Sheet; } function SetSheet(sheetName) { Sheet = sheetName; } function CellRead(row, col) { return oWorkBook.Sheets(Sheet).Cells(row, col).value; } function CellWrite(row, col, text) { oWorkBook.Sheets(Sheet).Cells(row, col).value = text; }
Also I have description file description.xml with bellow code:
<?xml version="1.0" encoding="UTF-8"?>
<ScriptExtensionGroup>
<Category Name="Runtime Objects">
<ScriptExtension Name="Excel OLE" Author="Denis Medvedev" Version="1.0" HomePage="https://ua.linkedin.com/in/medvedevdenis">
<Script Name="ExcelOLEcode.js">
<RuntimeObject Name="ExcelOLE">
<Method Name="Open" Routine="Open">
Opens an Excel file as OLE object
</Method>
<Method Name="Create" Routine="Create">
Creates a new Excel file
</Method>
<Method Name="Close" Routine="Close">
Closes an Excel file
</Method>
<Property Name="Cell" GetRoutine="CellRead" SetRoutine="CellWrite">Excel cell</Property>
<Property Name="Sheet" GetRoutine="GetSheet" SetRoutine="SetSheet">Excel sheet</Property>
<Description>Provides access to Excel files via OLE</Description>
</RuntimeObject>
</Script>
</ScriptExtension>
</Category>
</ScriptExtensionGroup>
I put them to ExcelExtension folder and created zip archive, after that renamed it to Excel.tcx

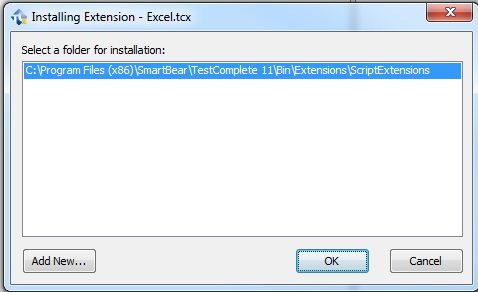

Then I installed new extension

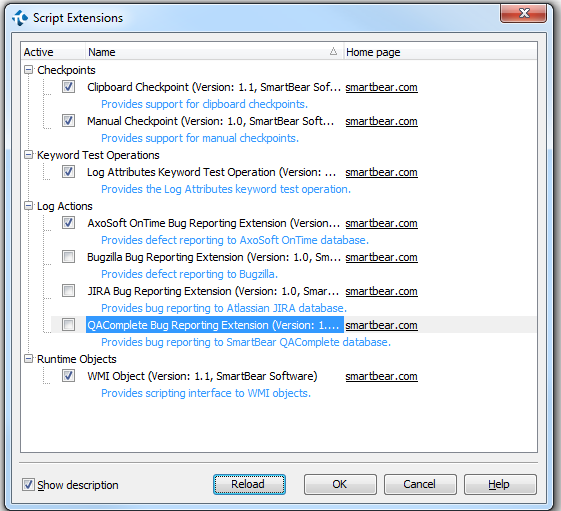

Right now I expect my extension in “Script Extension” screen, but it is not added.
The quiestion is: What I’m doing wrong?
P.S. I have installed https://support.smartbear.com/downloads/testcomplete/sdk/, but I’m not sure how to use it.
Script extensions are a little finicky. They want everything just so.
Perhaps you've created a tcx file where everything is in a subdirectory (ExcelExtension)? If so, then repackage so that the files are at the top level (no subdirectory).
