Swagger behind Nginx Proxy and CORS error
Hi all! I have a problem. I would like to not get an CORS error after pasting in swagger available under swagger.example.com the link to the file available under testing.example.com/plik.yaml. The v...
Forum Discussion
Yes, I know CORS is a browser thing. Yes I am referring to "Try it out" feature of the Swagger UI. Currently I have few APIs on few servers. Each looks like t{1,2,3,4}.example.com/swagger. Inside vhost file config looks like
location /swagger {
root /home/deployuser;
}
where inside /home/deployuser is "swagger" directory deployed plain old html/css/js method described in the docs. Of course it works.
But now I my goal is different approach. I have an application based on "Sinatra" which includes Swagger UI (the same files like from "plain on deployment method"). This app is available under, lets say, docs.swagger.example.com. When I open docs.swagger.example.com and put credentials to authenticate Swagger UI opens. Then I can choose to which API (t{1,2,3,4}.example.com/api) I would like to send request. Here the problem with CORS appears. Nginx config of the docs.swagger.example.com: https://pastebin.com/0mpf7ve7. I tried to add the line --> add_header Access-Control-Allow-Origin "https://docs.swagger.example.com"; to the nginx config files of the t{1,2,3,4}.example.com APIs. It does not help. 😕
I stucked. Is it possible to resolve it on the server docs.swagger.example.com side like docs https://swagger.io/docs/open-source-tools/swagger-ui/usage/cors/ says in the point 2 - quote "The application is located behind a proxy that enables the required CORS headers."?
ponelat Generally speaking which headers should I add to nginx config of the docs.swagger.example.com to resolve the cors issue?
PS
I tried many different configs found on the Internet but ..., among others below config which looks the best for me:
add_header Access-Control-Allow-Origin "*";
if ($http_origin ~* "^https://(t1.example.com|www.t1.example.com|t2.example.com|www.t2.example.com|and-so-on)$") {
add_header Access-Control-Allow-Origin "$http_origin";
}
Hey Newbie1 ,
It's a little out of scope of Swagger UI, how you configure the server for CORS. All browser clients should behave in a similar fashion.
That said, you should be able to get far debugging the exact error messages that appear in the console. And using https://www.test-cors.org/ to help debug issues.
Console errors can look like his:
You'll note that https://example.com doesn't have a `Access-Control-Allow-Origin` header, in your case you may notice other errors.
Here is an nginx example: https://enable-cors.org/server_nginx.html
Assuming you want full access to the API via the browser, you'd need to use:
- Access-Control-Allow-Origin: <the exact host name> (wildcard * has limitations on Authorization). This is something you're doing though.
- Access-Control-Allow-Headers: GET,POST,PUT,etc
And you'll also need to accept OPTIONS request for preflight requests (the browser asks the server before making the actual request)
Hope that helps!
I try this approach and let you know for 100%! 🙂
ponelat In my case it looks like this:

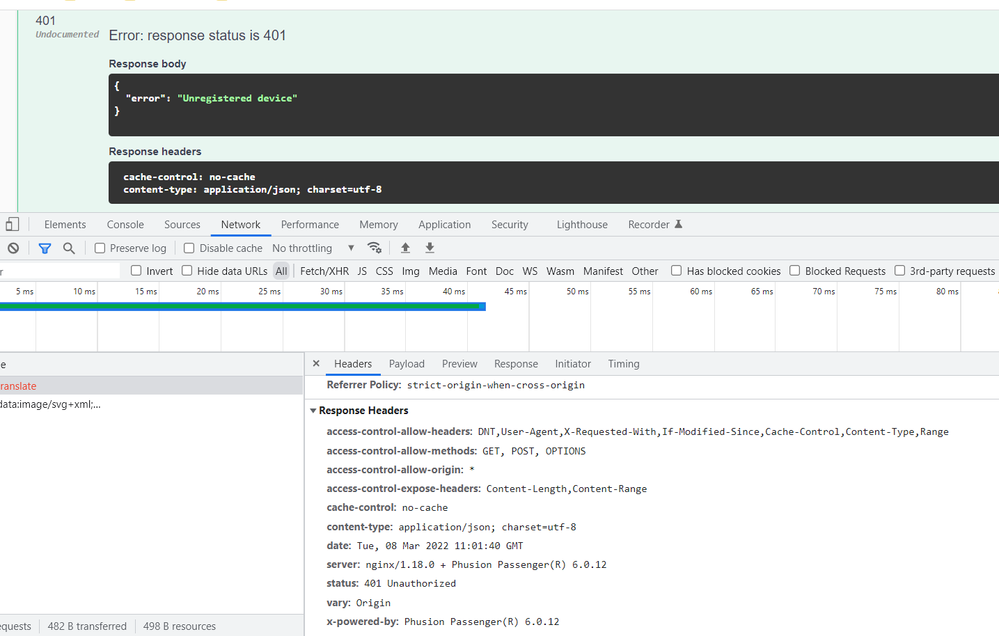

It's from Chrome. From firefox error from console is more accurate:
If you have any hints - appreciate! I am still trying resolve it.
PS
I also tried to copy paste config from this site https://enable-cors.org/server_nginx.html to swagger.example.com nginx config. Still nothing. Maybe something with proxy headers etc?
Newbie1 I see the standard error, the response headers are missing:`Access-Control-Allow-Origin: docs.swagger.example.com` .
This was surmised from "CORS Missing Allow Origin" error.
Be sure to support an OPTION pre-flight requests as well as returning the `Access-Control-Allow-Origin: docs.swagger.example.com`.
ponelat Thank you for an answer. I add whole config from https://enable-cors.org/server_nginx.html to the nginx config of the t1.example.com:
add_header 'Access-Control-Allow-Origin' '*'; location / { if ($request_method = 'OPTIONS') { add_header 'Access-Control-Allow-Origin' '*'; add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS'; # # Custom headers and headers various browsers *should* be OK with but aren't # add_header 'Access-Control-Allow-Headers' 'DNT,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type,Range'; # # Tell client that this pre-flight info is valid for 20 days # add_header 'Access-Control-Max-Age' 1728000; add_header 'Content-Type' 'text/plain; charset=utf-8'; add_header 'Content-Length' 0; return 204; } if ($request_method = 'POST') { add_header 'Access-Control-Allow-Origin' '*' always; add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS' always; add_header 'Access-Control-Allow-Headers' 'DNT,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type,Range' always; add_header 'Access-Control-Expose-Headers' 'Content-Length,Content-Range' always; } if ($request_method = 'GET') { add_header 'Access-Control-Allow-Origin' '*' always; add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS' always; add_header 'Access-Control-Allow-Headers' 'DNT,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type,Range' always; add_header 'Access-Control-Expose-Headers' 'Content-Length,Content-Range' always; } }and now Chrome returns something like this:

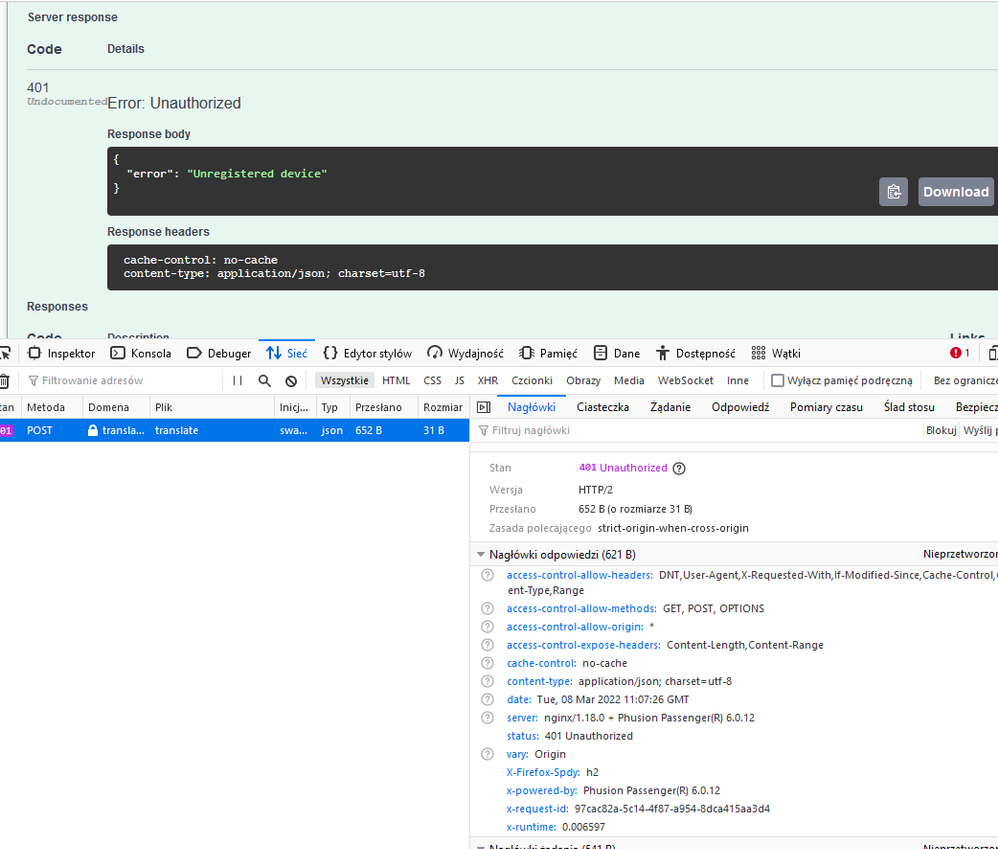

and Firefox:
