wildfly 10.0 ws-security configuration in soapui

I implemented WS-security with wildfly 10.0 and jbossws ws-security of wildfly works succesfully. This is my reference site. https://docs.jboss.org/author/display/JBWS/WS-Security#WS-Security-Authenticationandauthorization.

First, below is the server-side ws-security configuration.

== jaxws-endpoint-config.xml

<jaxws-config xmlns="urn:jboss:jbossws-jaxws-config:4.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
			xmlns:javaee="http://java.sun.com/xml/ns/javaee"
			xsi:schemaLocation="urn:jboss:jbossws-jaxws-config:4.0 schema/jbossws-jaxws-config_4_0.xsd">

   <endpoint-config>
      <config-name>Custom WS-Security Endpoint</config-name>
      <property>
         <property-name>ws-security.signature.properties</property-name>
         <property-value>META-INF/server.properties</property-value>
      </property>
      <property>
         <property-name>ws-security.encryption.properties</property-name>
         <property-value>META-INF/server.properties</property-value>
      </property>
      <property>
         <property-name>ws-security.signature.username</property-name>
	 <property-value>servicekey</property-value>
      </property>
      <property>
         <property-name>ws-security.encryption.username</property-name>
         <property-value>clientkey</property-value>
      </property>
      <property>
         <property-name>ws-security.callback-handler</property-name>
         <property-value>
         com.aaa.soap.KeystorePasswordCallback
         </property-value>
      </property>
   </endpoint-config>
</jaxws-config>

== server.properties

org.apache.ws.security.crypto.provider=org.apache.ws.security.components.crypto.Merlin
org.apache.ws.security.crypto.merlin.keystore.type=jks
org.apache.ws.security.crypto.merlin.keystore.password=password123
org.apache.ws.security.crypto.merlin.keystore.alias=servicekey
org.apache.ws.security.crypto.merlin.keystore.file=META-INF/serviceKeystore.jks

== IHelloWorld.java

package com.aaa.soap;

import javax.jws.WebMethod;
import javax.jws.WebParam;
import javax.jws.WebResult;
import javax.jws.WebService;

import org.jboss.ws.api.annotation.PolicySets;

@WebService
@PolicySets({"WS-SP-EX224_WSS11_Mutual_Auth_X509_Sign_Encrypt"})
public interface IHelloWorld {

	@WebMethod
	@WebResult
	public String sayHello(@WebParam String name);
}

And the following show the client codes in jsp file

== index.jsp

<body>
<%
String SERVICE_URL = "http://localhost:8080/SOAPSecurityWeb/HelloWorld";

try {
	QName serviceName = new QName("http://soap.aaa.com/", "HelloWorldService");

	URL wsdlURL;
	wsdlURL = new URL(SERVICE_URL + "?wsdl");
	Service service = Service.create(wsdlURL, serviceName);

	IHelloWorld port = (IHelloWorld) service.getPort(IHelloWorld.class);

	((BindingProvider) port).getRequestContext().put(SecurityConstants.CALLBACK_HANDLER, new KeystorePasswordCallback());
	((BindingProvider) port).getRequestContext().put(SecurityConstants.SIGNATURE_PROPERTIES,
			Thread.currentThread().getContextClassLoader().getResource("META-INF/client.properties"));
	((BindingProvider) port).getRequestContext().put(SecurityConstants.ENCRYPT_PROPERTIES,
			Thread.currentThread().getContextClassLoader().getResource("META-INF/client.properties"));
	((BindingProvider) port).getRequestContext().put(SecurityConstants.SIGNATURE_USERNAME, "clientkey");
	((BindingProvider) port).getRequestContext().put(SecurityConstants.ENCRYPT_USERNAME, "servicekey");

	out.println(port.sayHello("jina"));
} catch (Exception e) {
	// TODO Auto-generated catch block
	e.printStackTrace();
}
%>
</body>

== client.properties

org.apache.ws.security.crypto.provider=org.apache.ws.security.components.crypto.Merlin
org.apache.ws.security.crypto.merlin.keystore.type=jks
org.apache.ws.security.crypto.merlin.keystore.password=password123
org.apache.ws.security.crypto.merlin.keystore.alias=clientkey
org.apache.ws.security.crypto.merlin.keystore.file=META-INF/clientKeystore.jks

WS-security with wildfly 10.0 JBossWS works successfully and encrypted codes are thrown without any problems.

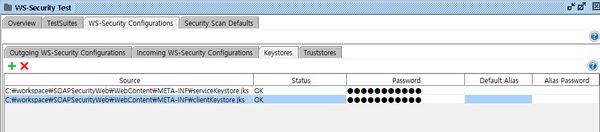

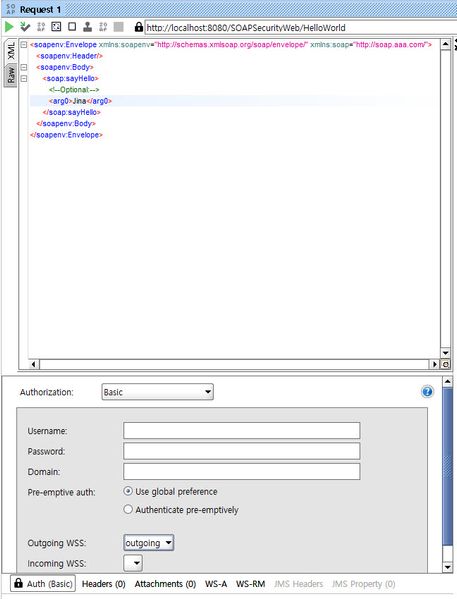

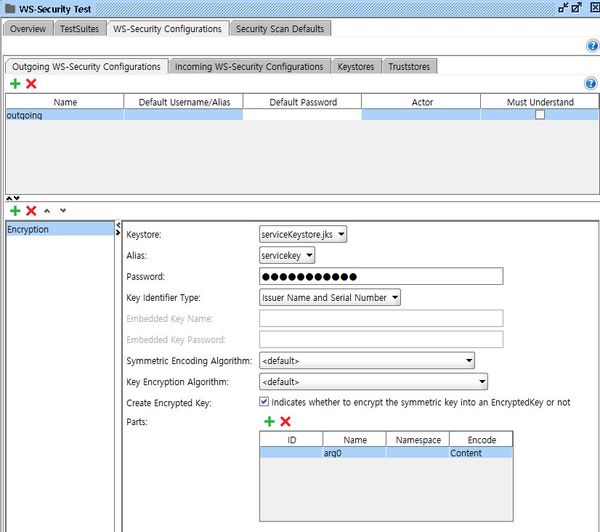

But the problem is how to configure this wildfly ws-security setting in soapui. These pictures show the ws-security configuration of soapui.

Above ws-security configurations in soapui bring the exceptions like below,

WARNING [org.apache.cxf.phase.PhaseInterceptorChain] (default task-3) Interceptor for {http://soap.aaa.com/}HelloWorldService has thrown exception, unwinding now: org.apache.cxf.binding.soap.SoapFault: A security error was encountered when verifying the message
	at org.apache.cxf.ws.security.wss4j.WSS4JUtils.createSoapFault(WSS4JUtils.java:216)
	at org.apache.cxf.ws.security.wss4j.WSS4JInInterceptor.handleMessageInternal(WSS4JInInterceptor.java:329)
	at org.apache.cxf.ws.security.wss4j.WSS4JInInterceptor.handleMessage(WSS4JInInterceptor.java:184)
	at org.apache.cxf.ws.security.wss4j.PolicyBasedWSS4JInInterceptor.handleMessage(PolicyBasedWSS4JInInterceptor.java:79)
	at org.apache.cxf.ws.security.wss4j.PolicyBasedWSS4JInInterceptor.handleMessage(PolicyBasedWSS4JInInterceptor.java:66)
	at org.apache.cxf.phase.PhaseInterceptorChain.doIntercept(PhaseInterceptorChain.java:308)
	at org.apache.cxf.transport.ChainInitiationObserver.onMessage(ChainInitiationObserver.java:121)
	at org.apache.cxf.transport.http.AbstractHTTPDestination.invoke(AbstractHTTPDestination.java:251)
	at org.jboss.wsf.stack.cxf.RequestHandlerImpl.handleHttpRequest(RequestHandlerImpl.java:108)
	at org.jboss.wsf.stack.cxf.transport.ServletHelper.callRequestHandler(ServletHelper.java:134)
	at org.jboss.wsf.stack.cxf.CXFServletExt.invoke(CXFServletExt.java:88)
	at org.apache.cxf.transport.servlet.AbstractHTTPServlet.handleRequest(AbstractHTTPServlet.java:293)
	at org.apache.cxf.transport.servlet.AbstractHTTPServlet.doPost(AbstractHTTPServlet.java:212)
	at javax.servlet.http.HttpServlet.service(HttpServlet.java:707)
	at org.jboss.wsf.stack.cxf.CXFServletExt.service(CXFServletExt.java:136)
	at org.jboss.wsf.spi.deployment.WSFServlet.service(WSFServlet.java:140)
	at javax.servlet.http.HttpServlet.service(HttpServlet.java:790)
	at io.undertow.servlet.handlers.ServletHandler.handleRequest(ServletHandler.java:85)
	at io.undertow.servlet.handlers.security.ServletSecurityRoleHandler.handleRequest(ServletSecurityRoleHandler.java:62)
	at io.undertow.servlet.handlers.ServletDispatchingHandler.handleRequest(ServletDispatchingHandler.java:36)
	at org.wildfly.extension.undertow.security.SecurityContextAssociationHandler.handleRequest(SecurityContextAssociationHandler.java:78)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at io.undertow.servlet.handlers.security.SSLInformationAssociationHandler.handleRequest(SSLInformationAssociationHandler.java:131)
	at io.undertow.servlet.handlers.security.ServletAuthenticationCallHandler.handleRequest(ServletAuthenticationCallHandler.java:57)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at io.undertow.security.handlers.AbstractConfidentialityHandler.handleRequest(AbstractConfidentialityHandler.java:46)
	at io.undertow.servlet.handlers.security.ServletConfidentialityConstraintHandler.handleRequest(ServletConfidentialityConstraintHandler.java:64)
	at io.undertow.security.handlers.AuthenticationMechanismsHandler.handleRequest(AuthenticationMechanismsHandler.java:60)
	at io.undertow.servlet.handlers.security.CachedAuthenticatedSessionHandler.handleRequest(CachedAuthenticatedSessionHandler.java:77)
	at io.undertow.security.handlers.NotificationReceiverHandler.handleRequest(NotificationReceiverHandler.java:50)
	at io.undertow.security.handlers.AbstractSecurityContextAssociationHandler.handleRequest(AbstractSecurityContextAssociationHandler.java:43)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at org.wildfly.extension.undertow.security.jacc.JACCContextIdHandler.handleRequest(JACCContextIdHandler.java:61)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at io.undertow.servlet.handlers.ServletInitialHandler.handleFirstRequest(ServletInitialHandler.java:284)
	at io.undertow.servlet.handlers.ServletInitialHandler.dispatchRequest(ServletInitialHandler.java:263)
	at io.undertow.servlet.handlers.ServletInitialHandler.access$000(ServletInitialHandler.java:81)
	at io.undertow.servlet.handlers.ServletInitialHandler$1.handleRequest(ServletInitialHandler.java:174)
	at io.undertow.server.Connectors.executeRootHandler(Connectors.java:202)
	at io.undertow.server.HttpServerExchange$1.run(HttpServerExchange.java:793)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617)
	at java.lang.Thread.run(Thread.java:745)
Caused by: org.apache.wss4j.common.ext.WSSecurityException: An error was discovered processing the <wsse:Security> header
	at org.apache.wss4j.common.crypto.AlgorithmSuiteValidator.checkSymmetricEncryptionAlgorithm(AlgorithmSuiteValidator.java:149)
	at org.apache.wss4j.dom.processor.EncryptedKeyProcessor.decryptDataRef(EncryptedKeyProcessor.java:550)
	at org.apache.wss4j.dom.processor.EncryptedKeyProcessor.decryptDataRefs(EncryptedKeyProcessor.java:481)
	at org.apache.wss4j.dom.processor.EncryptedKeyProcessor.handleToken(EncryptedKeyProcessor.java:199)
	at org.apache.wss4j.dom.processor.EncryptedKeyProcessor.handleToken(EncryptedKeyProcessor.java:76)
	at org.apache.wss4j.dom.engine.WSSecurityEngine.processSecurityHeader(WSSecurityEngine.java:344)
	at org.apache.cxf.ws.security.wss4j.WSS4JInInterceptor.handleMessageInternal(WSS4JInInterceptor.java:280)
	... 42 more

Kindly inform me how to set the correct ws-security configuration of wildfly into soapui. Your advice will be deeply appreciated. Thanks.
