Swagger Response In Array

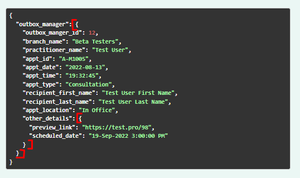

Hi Team, My client want to see api response in array. But swagger always show response in json. Please check the attached image. Client wants response as he mentioned with the array brackets. Please ...
  • chichepo's avatar
    chichepo
    2 years ago

    Hi jerry91

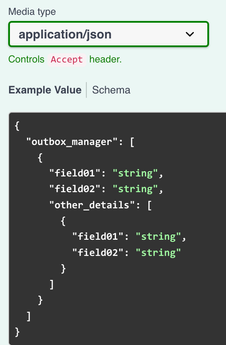

    When playing a little bit with your example I got the following result:

    Is that what you are looking for?

chichepo's avatar
chichepo
Champion Level 3
2 years ago

Hi jerry91

When playing a little bit with your example I got the following result:

Is that what you are looking for?

  • jerry91's avatar
    jerry91
    New Contributor
    2 years ago

    Hi chichepo

    Yes I need something like this.  What changes I have to made in my swagger documentation ?

    • chichepo's avatar
      chichepo
      Champion Level 3
      2 years ago

      jerry91



      First I declared my response simply using media type application/json

      responses:
        '200':
          description: Successful operation
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/MyResponse'


      Then, for a better readability, I define the response schema as following:

        schemas:
    MyResponse:
      type: object
      properties:
        outbox_manager:
          $ref: '#/components/schemas/TheFirstArray'

    TheFirstArray:
      type: array
      items:
        type: object
        properties:
          field01:
            type: string
          field02:
            type: string
          other_details:
            type: array
            items:
              $ref: '#/components/schemas/TheSecondArray'

    TheSecondArray:
      type: object
      properties:
        field01:
          type: string
        field02:
          type: string



      Et voila!! ğŸ˜‰
