REST request with parameters - how to avoid default Content-Transfert-Encoding:quoted-printable ?

Hi, I am facing to an issue (with soapUI version 5.6.0).
My POST REST request have two parameters. One of them is a zip file converted in Base64.

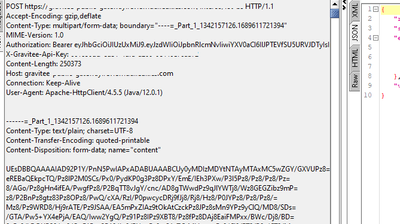

In Request Raw tab You can see a parameter "Content-Transfert-Encoding" with "quoted-printable". The parameter content contains multiple lines may be due to the Content-Transfert-Encoding parameter value.
Expected one line with all the parameter content
How to avoid this default value ?

In a previous topics one member says that soapUI uses the mail api. And explains that if the primary type of this datasource is "text", and :

- If all the bytes in its input stream are US-ASCII, then the encoding is "7bit".

- If more than half of the bytes are non-US-ASCII, then the encoding is "base64".

- If less than half of the bytes are non-US-ASCII, then the encoding is "quoted-printable".


But how to make sure that more than half of the bytes are non-US-ASCII ?

REST
  • JHunt's avatar
    JHunt
    Community Hero
    2 years ago

    You might have a misunderstanding in how your endpoint expects to receive its data - double check the spec.



    If you are to send a file as an attachment (multipart) as you are doing already, then your endpoint should be able to manage all of those Content-Transfer-Encodings, as these are well specified and I can't imagine endpoint developer is not using a standard library.



    Which is why I suspect they are expecting it in another way? Perhaps as a single request body, perhaps in a header, perhaps embedded into JSON? In these cases you would do the base64 encoding yourself (groovy-lang.org) and specify the data wherever it really belongs.

    • kbr's avatar
      kbr
      New Contributor
      2 years ago

      Thanks for your reply JHunt.
      What do you mean by "If I send a file as an attachment (multipart)" ?
      I don't use soapUI's attachment functionnality to make my POST request. But I send my file throw a request parameter (name "content") encoded in Base64 (as required our spec).

      I just want to know if it is possible to avoid soapUI such raw (multiple return lines and adding some characters at the end of each of them). I believe that it was related to "Content-Transfer-Encoding:quoted-printable" setting made by soapUI.

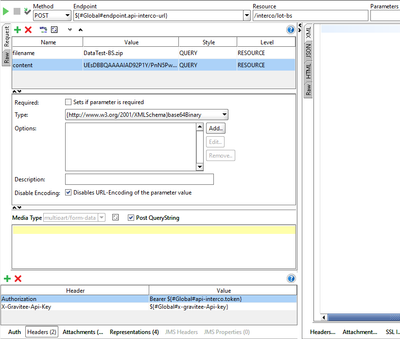

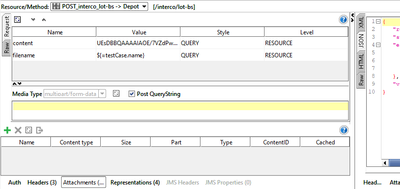

      Below my service settings with details of base64 request parameter



      If my zip file parameter encoded in based64 doesn't contains any pdf file, i don't why (may be due to the parameter length), but soapUI manage it correctly en the parameter Content-Transfert-Encoding : 7bit (see bellow)

      How to get the same if my zip file contains pdf file ?

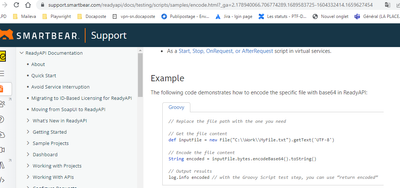

      PS: To encode in base64 my zip file, i follow your site exemple (see bellow).

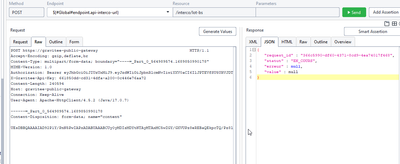

      I install ReadyAPI solution, the same request execute properly đŸ€”



  • nmrao's avatar
    nmrao
    Champion Level 3
    2 years ago

    An area to explore.

    Just happen to see the following thread. If not seen already, please check.

    https://www.w3.org/Protocols/rfc1341/5_Content-Transfer-Encoding.html



    The summary of the question:

    how to avoid default Content-Transfert-Encoding:quoted-printable



    You can explicitly add the Headers.

    In your case, you seem to attach the zip with pdf.



    Then try the below headers:

    Content-Type: application/zip

    Content-Transfert-Encoding: base64



  • kbr's avatar
    kbr
    New Contributor
    10 months ago

    Thanks for you different feedbacks. But unfortunately, these do not help me to fix my issue.

    I just want to know why I have two different results with the same script execution (soapUI vs ReadyAPI).

    My request has two parameters "filename" and "content". The second parameter is filled by a very long string (the result of zip file encoded in Base64).

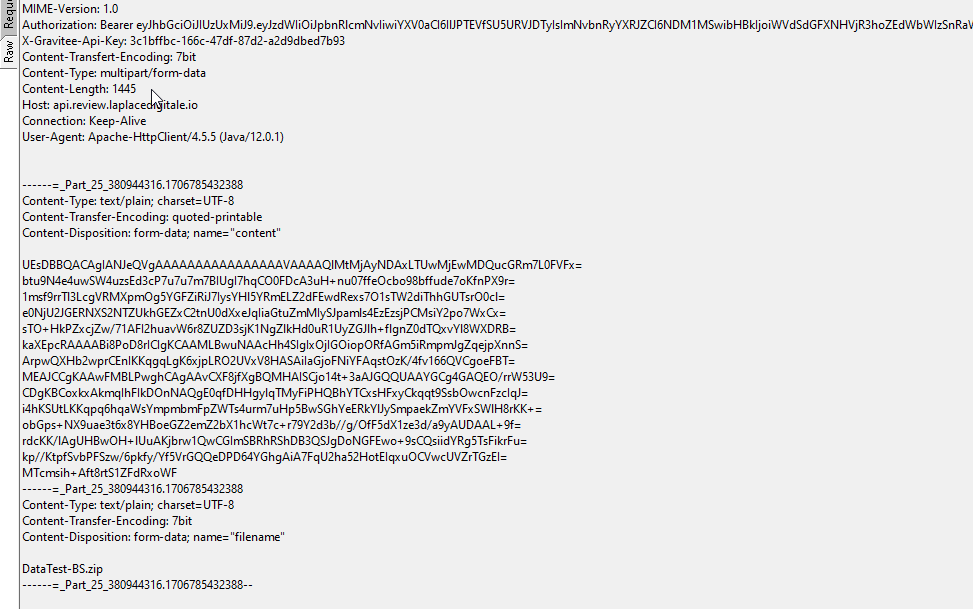

    As I can see, with soapUI, "content" parameter has quoted-printable "Content-Transfer-Encoding" value. Is there any way to avoid this setting done by soapUI ?

    With ReadyAPI, the same request editor is different, "content" parameter has no "Content-Transfer-Encoding" value (in Request Raw view there is no break line).

    As I said below, it depends of content length.

    Under a specific value soapUI keep Content-Transfer-Encoding value to 7bit

    Over a specific value soapUI seems to format the content value as Content-Transfer-Encoding set to "quoted-printable" value. It seems that soapUI edit the request as we can see (on request raw) multiple break lines.



  • kbr's avatar
    kbr
    New Contributor
    2 months ago

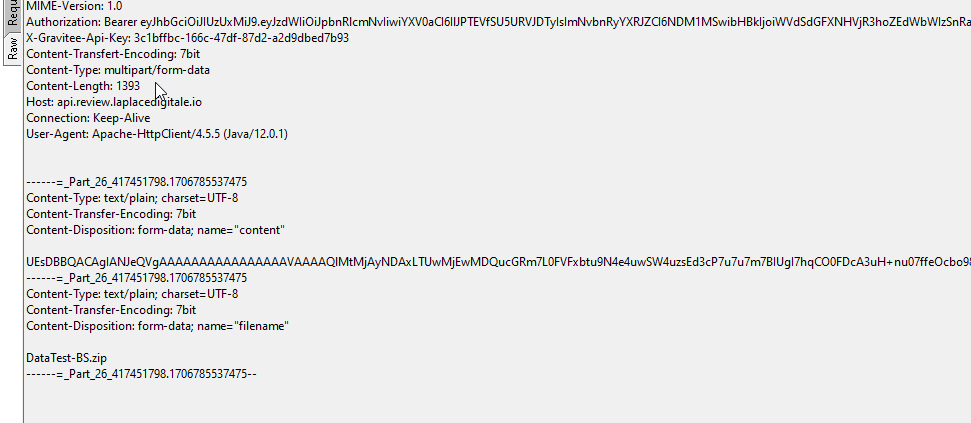

    Here a workaround. AI suggest me to do my POST request with a groovy script (find bellow the groovy script that I used)

    import org.apache.http.impl.client.CloseableHttpClient
import org.apache.http.entity.mime.MultipartEntityBuilder
import org.apache.http.impl.client.HttpClients
import org.apache.http.client.methods.HttpPost
import org.apache.http.util.EntityUtils

CloseableHttpClient httpClient = HttpClients.createDefault()
// DĂ©finir l'URL de votre service
def url = context.expand('${#Global#endpoint.api-interco-url}')+'/interco/lot-bs'
HttpPost post = new HttpPost(url)

// Construire le corps de la requĂȘte pour multipart/form-data
MultipartEntityBuilder builder = MultipartEntityBuilder.create()

// Ajouter des champs de formulaire
// log.info context.expand('${=testCase.name}')
builder.addTextBody("filename", context.expand('${=testCase.name}') )
// log.info context.expand('${#TestCase#encodedFile}')
builder.addTextBody("content", context.expand('${#TestCase#encodedFile}') )

// Construire l'entité multipart
def multipartEntity = builder.build()
post.setEntity(multipartEntity)

// CrĂ©er les en-tĂȘtes de la requĂȘte
// post.setHeader("Content-Type", "multipart/form-data") // laisser le systÚme déterminer le Content-Type
post.setHeader('Authorization', 'Bearer ' + context.expand('${#TestCase#intercoApiToken}'))
post.setHeader('X-Gravitee-Api-Key', context.expand('${#Project#x-gravitee-api-key.header.attribute}'))
post.setHeader('Content-Disposition', 'form-data')
post.setHeader('Content-transfert-encoding', '7bit')
// post.setHeader('Connection','Keep-Alive')

// Envoyer la requĂȘte HTTP POST
def response = httpClient.execute(post)

// Gérer la réponse
def responseContent = EntityUtils.toString(response.getEntity())

if (response.statusLine.statusCode == 200) {
    log.info "Réponse réussie : ${responseContent}"
} else {
    log.error "http status error code : ${response.statusLine.statusCode}"
    log.error "body content : ${responseContent}"
}

// Fermer le client
httpClient.close()
