Forum Discussion

rajpenumalli's avatar
rajpenumalli
Occasional Contributor
7 years ago

Need help to Deploy REST Mock Service as War on Tomcat

Hi All,

I am able to create virtual Rest Service On SOAPUI and It is working fine within the SOAPUI  interface.



But i am not able to deploy  as seperate virtual Rest Service  as war on tomcat.



I have created an REST virtual service using:



  • SOAPUI Opensource Version :    5.4.0 -Open Source
  • Java JDK installed on machine:    8.0_151
  • Tomcat version:                              apache-tomcat-8.0.49



Here i am listing the Request and Expected Response



Request:

    GET http://localhost:8085/greeting HTTP/1.1
    Accept-Encoding: gzip,deflate
    Accept: application/json
    Host: localhost:8085
    Connection: Keep-Alive
    User-Agent: Apache-HttpClient/4.1.1 (java 1.5)



Expected Response:

     HTTP/1.1 200 OK
     Content-Type: application/json
     Content-Encoding: gzip
     Content-Length: 54
     Server: Jetty(6.1.26)

     {"id":1,"content":"Hello, World!"}



Using Following Steps i have created REST virtual service  and Tested:

  1. Created an empty project
  2. Renamed project as 'RestVirtualServiceDemo'
  3. Created Sample service interface using following proceduire:

            Right click on  Project:

            Selected option 'New REST service From URI' from context menu

            Entered ' http://localhost:8085/greeting'

            and click on 'OK' button

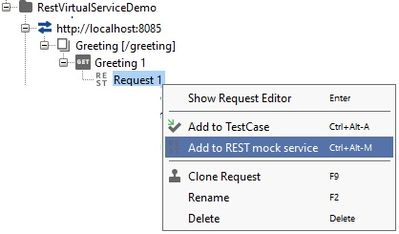

4. Now I expanded the created interface and clicked 'Add to REST mock service' option



5. Step -4 Created a REST Mock Service with default name as "REST MockService 1"

as shown below:

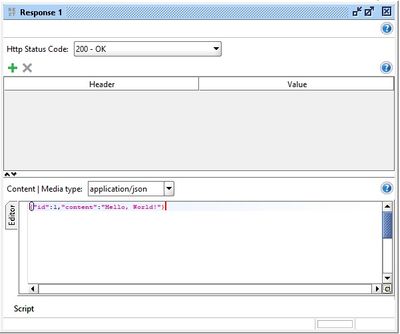

6. Added expected mock response ,by double clicking on Response 1 under 'REST MockService 1'  as shown below:

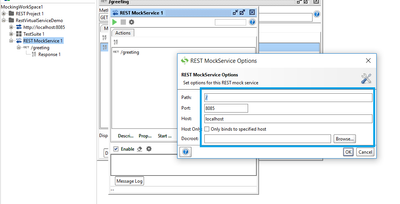

7. Configured Rest Mock Service Options as shown below:

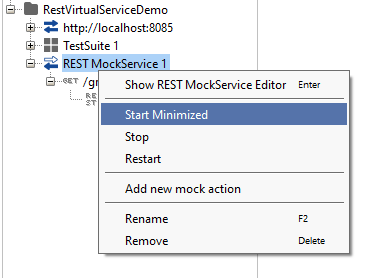

8. Started Mock service:





10. Created Test Step for the same Step and Sent Request to Mock service

and got response as expected:



        HTTP/1.1 200 OK
        Content-Type: application/json
        Content-Encoding: gzip
        Content-Length: 54
        Server: Jetty(6.1.26)

       {"id":1,"content":"Hello, World!"}

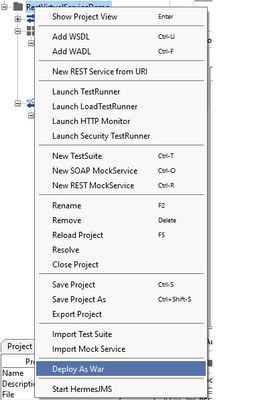

11. Using Deploy as war option ,war file generated

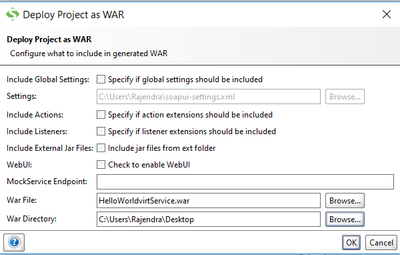

12. Following options are used to generate war file:



 Note: I also tried most of the permutations and Combinations of above settings , nothing helped



  1. Now Closed SOAPUI application.



  1. Copied generated HelloWorldvirtService.war file local <TOMCAT_HOME>\webapps\ folder.



15 Started tomcat.



16 Application Deployed successfully without any errors.



Tomcat Server console log:

12-Feb-2018 15:23:08.073 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Server version: Apache Tomcat/8.0.49
12-Feb-2018 15:23:08.077 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Server built: Jan 19 2018 20:21:23 UTC
12-Feb-2018 15:23:08.077 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Server number: 8.0.49.0
12-Feb-2018 15:23:08.077 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log OS Name: Windows 10
12-Feb-2018 15:23:08.077 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log OS Version: 10.0
12-Feb-2018 15:23:08.078 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Architecture: amd64
12-Feb-2018 15:23:08.078 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Java Home: C:\Program Files\Java\jdk1.8.0_151\jre
12-Feb-2018 15:23:08.078 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log JVM Version: 1.8.0_151-b12
12-Feb-2018 15:23:08.078 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log JVM Vendor: Oracle Corporation
12-Feb-2018 15:23:08.079 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log CATALINA_BASE: C:\app\apache-tomcat-8.0.49
12-Feb-2018 15:23:08.079 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log CATALINA_HOME: C:\app\apache-tomcat-8.0.49
12-Feb-2018 15:23:08.079 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Djava.util.logging.config.file=C:\app\apache-tomcat-8.0.49\conf\logging.properties
12-Feb-2018 15:23:08.080 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager
12-Feb-2018 15:23:08.080 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Djdk.tls.ephemeralDHKeySize=2048
12-Feb-2018 15:23:08.080 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Djava.protocol.handler.pkgs=org.apache.catalina.webresources
12-Feb-2018 15:23:08.081 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Dignore.endorsed.dirs=
12-Feb-2018 15:23:08.082 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Dcatalina.base=C:\app\apache-tomcat-8.0.49
12-Feb-2018 15:23:08.082 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Dcatalina.home=C:\app\apache-tomcat-8.0.49
12-Feb-2018 15:23:08.083 INFO [main] org.apache.catalina.startup.VersionLoggerListener.log Command line argument: -Djava.io.tmpdir=C:\app\apache-tomcat-8.0.49\temp
12-Feb-2018 15:23:08.085 INFO [main] org.apache.catalina.core.AprLifecycleListener.lifecycleEvent Loaded APR based Apache Tomcat Native library 1.2.16 using APR version 1.6.3.
12-Feb-2018 15:23:08.090 INFO [main] org.apache.catalina.core.AprLifecycleListener.lifecycleEvent APR capabilities: IPv6 [true], sendfile [true], accept filters [false], random [true].
12-Feb-2018 15:23:08.574 INFO [main] org.apache.catalina.core.AprLifecycleListener.initializeSSL OpenSSL successfully initialized (OpenSSL 1.0.2m 2 Nov 2017)
12-Feb-2018 15:23:08.667 INFO [main] org.apache.coyote.AbstractProtocol.init Initializing ProtocolHandler ["http-apr-8080"]
12-Feb-2018 15:23:08.675 INFO [main] org.apache.coyote.AbstractProtocol.init Initializing ProtocolHandler ["ajp-apr-8009"]
12-Feb-2018 15:23:08.676 INFO [main] org.apache.catalina.startup.Catalina.load Initialization processed in 892 ms
12-Feb-2018 15:23:08.701 INFO [main] org.apache.catalina.core.StandardService.startInternal Starting service Catalina
12-Feb-2018 15:23:08.702 INFO [main] org.apache.catalina.core.StandardEngine.startInternal Starting Servlet Engine: Apache Tomcat/8.0.49
12-Feb-2018 15:23:08.728 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployWAR Deploying web application archive C:\app\apache-tomcat-8.0.49\webapps\HelloWorldvirtService.war
12-Feb-2018 15:23:13.613 INFO [localhost-startStop-1] org.apache.jasper.servlet.TldScanner.scanJars At least one JAR was scanned for TLDs yet contained no TLDs. Enable debug logging for this logger for a complete list of JARs that were scanned but no TLDs were found in them. Skipping unneeded JARs during scanning can improve startup time and JSP compilation time.
12-Feb-2018 15:23:13.743 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployWAR Deployment of web application archive C:\app\apache-tomcat-8.0.49\webapps\HelloWorldvirtService.war has finished in 5,015 ms
12-Feb-2018 15:23:13.745 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deploying web application directory C:\app\apache-tomcat-8.0.49\webapps\docs
12-Feb-2018 15:23:13.768 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory C:\app\apache-tomcat-8.0.49\webapps\docs has finished in 23 ms
12-Feb-2018 15:23:13.770 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deploying web application directory C:\app\apache-tomcat-8.0.49\webapps\examples
12-Feb-2018 15:23:13.974 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory C:\app\apache-tomcat-8.0.49\webapps\examples has finished in 204 ms
12-Feb-2018 15:23:13.975 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deploying web application directory C:\app\apache-tomcat-8.0.49\webapps\host-manager
12-Feb-2018 15:23:14.001 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory C:\app\apache-tomcat-8.0.49\webapps\host-manager has finished in 26 ms
12-Feb-2018 15:23:14.001 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deploying web application directory C:\app\apache-tomcat-8.0.49\webapps\manager
12-Feb-2018 15:23:14.023 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory C:\app\apache-tomcat-8.0.49\webapps\manager has finished in 22 ms
12-Feb-2018 15:23:14.023 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deploying web application directory C:\app\apache-tomcat-8.0.49\webapps\ROOT
12-Feb-2018 15:23:14.044 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory C:\app\apache-tomcat-8.0.49\webapps\ROOT has finished in 21 ms
12-Feb-2018 15:23:14.050 INFO [main] org.apache.coyote.AbstractProtocol.start Starting ProtocolHandler ["http-apr-8080"]
12-Feb-2018 15:23:14.057 INFO [main] org.apache.coyote.AbstractProtocol.start Starting ProtocolHandler ["ajp-apr-8009"]
12-Feb-2018 15:23:14.062 INFO [main] org.apache.catalina.startup.Catalina.start Server startup in 5385 ms



After this ,virtual web service running on tomcat must be accessible from browser.

but i am not able to connect virtual service from browser.



Tried to access virtual service From browser  using following URl's:

             http://localhost:8080/greeting/

             http://localhost:8085/greeting/



Any clue where i am doing mistake in this process?





Thanks in Advance,

Raj







  • Hi Raj,



    Did you get this issue sorted ?

    If yes , could you please guide on the fix which worked for you.



    Regards,

    Santhosh

    • rajpenumalli's avatar
      rajpenumalli
      Occasional Contributor

      No not yet,

      I tried in many ways ,but issue not resolved .

      i don''t have any options left to try.



      Thanks,

      Rajendra

      • rajpenumalli's avatar
        rajpenumalli
        Occasional Contributor

        I doubt on SOAP UI Opensource capabilities,

        will it support  to Deploy REST Mock Service as War on Tomcat?

        Because lots of questions are floating in various forums  and none of the question answered properly.
